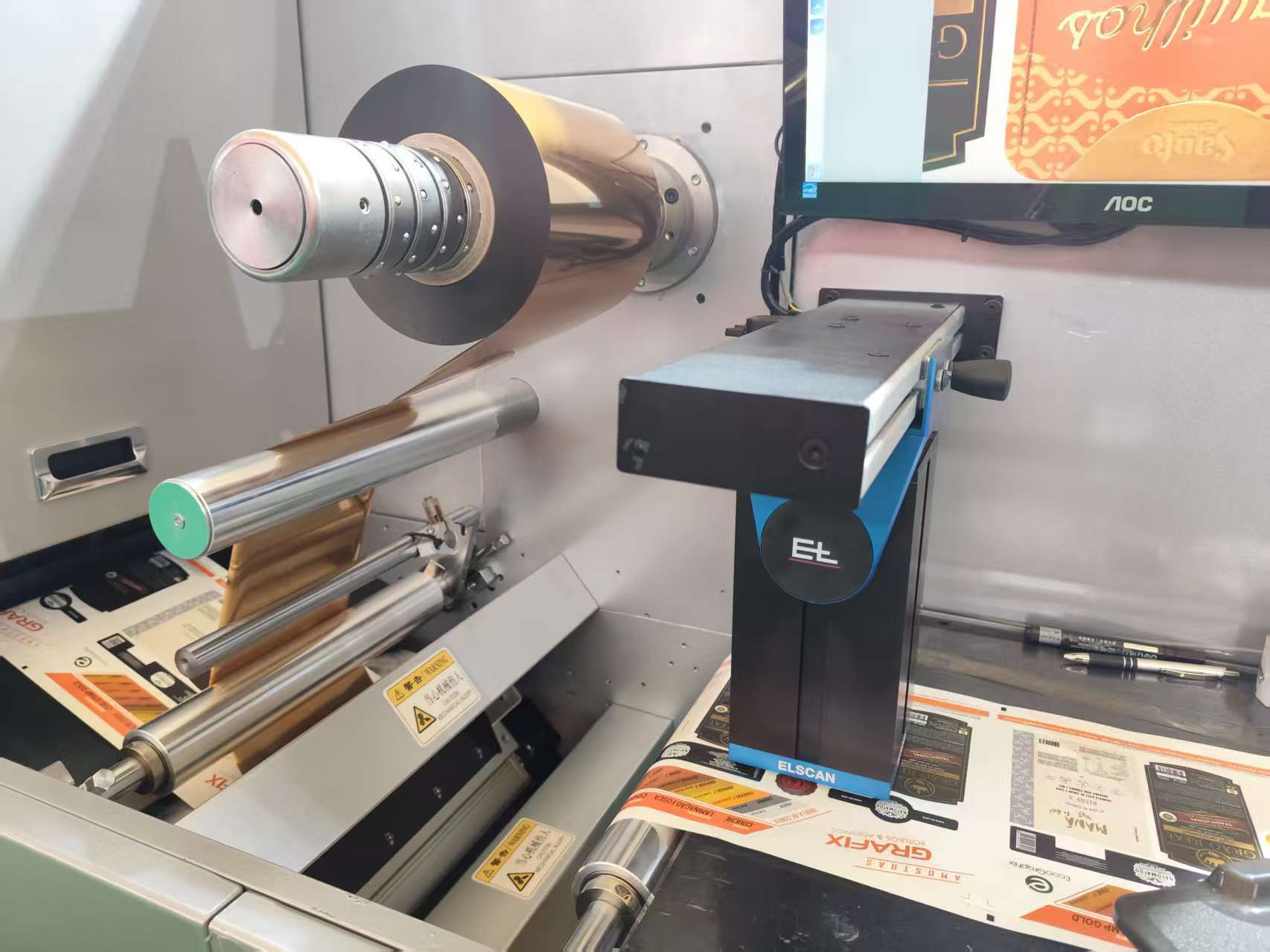

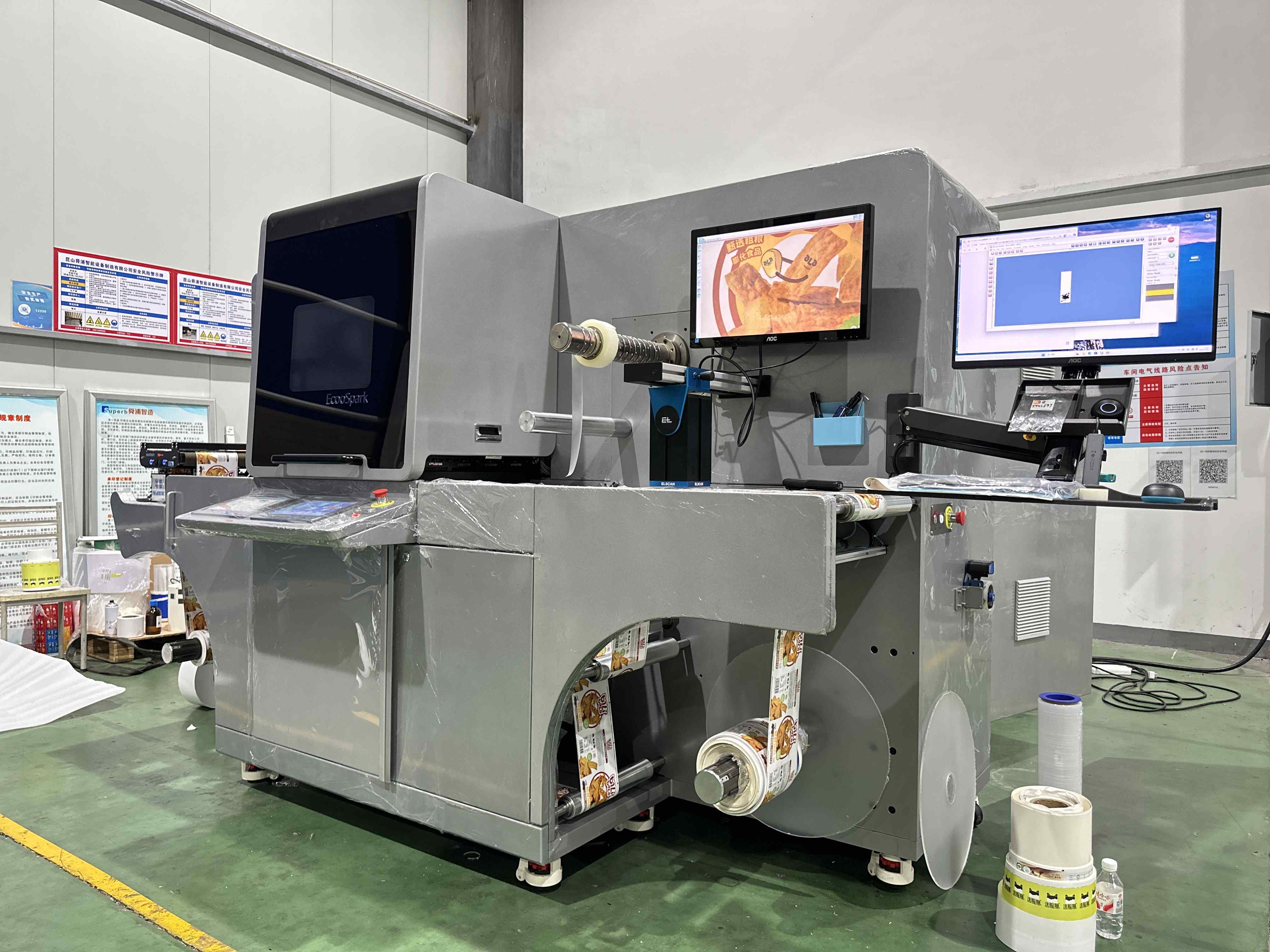

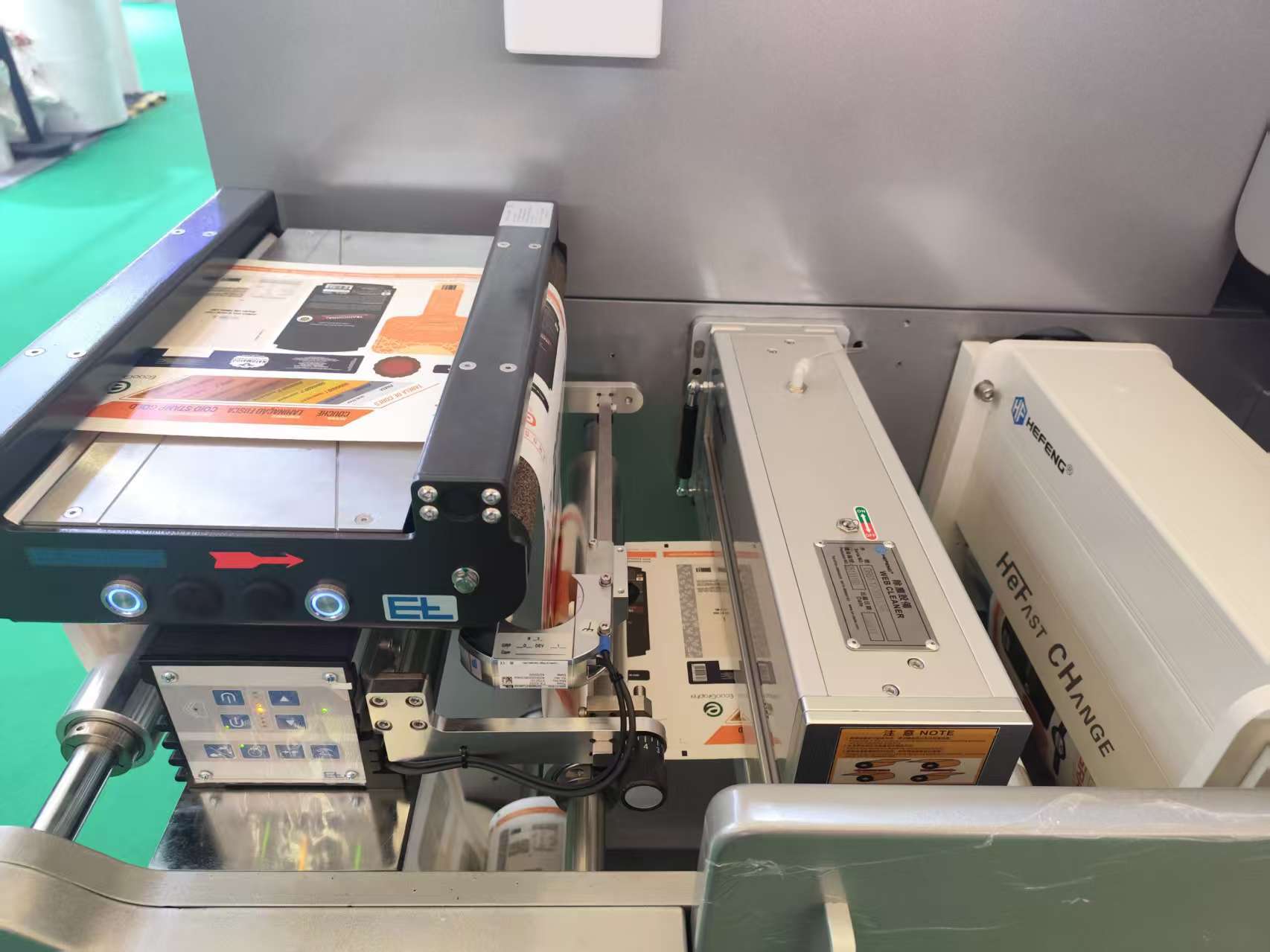

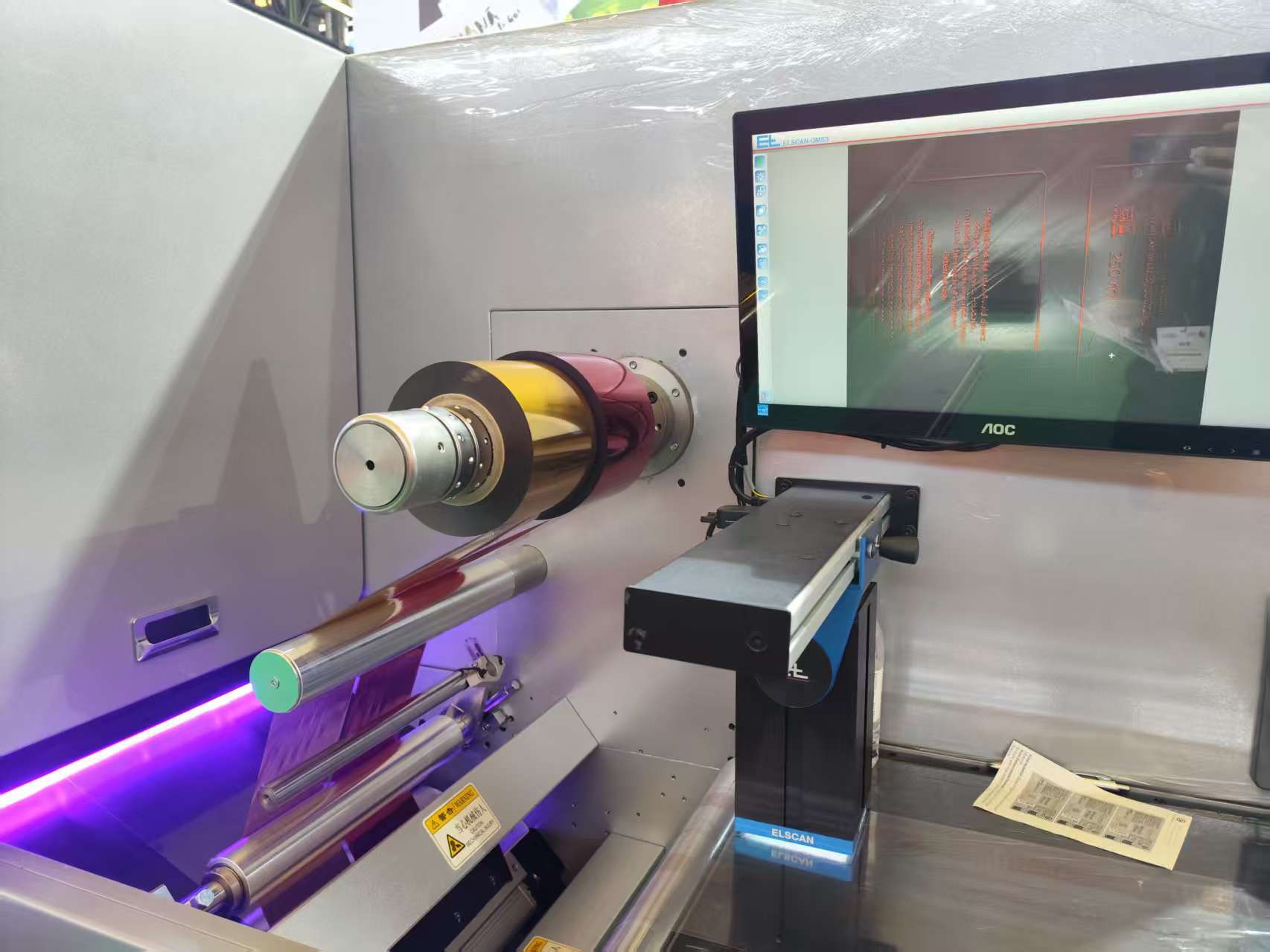

EcooSpark Digital Label Printing Finishing Embellishment Machine
This machine EcooSpark can do UV spot varnishing, cold foil stamping, braille printing ,3D embossing, variable data printing , tactile warning triangle marks and etcs, with no need for plates. EcooSpark is the ideal finishing embellishment machine for most of the digital label printing presses such as HP Indigo,Screen Truepress,Xeikon, flexo printing presses, traditional printing press (roll to roll) and other label printing equipment .
As the OEM factory in China, EcooGraphix started to sell the machine since 2018,now with hundred of machines in many countries.
| Model EcooSpark DS288 | ||
| Printing Technology | UV Piezo DoD(drop on demand)-inkjet | |
| Resolution | up to 1440*360 dpi | |
| Printing speed | 10m/min - 60m/min(depend on polymer layer thickness) | |
| Variable Image system | PDF, optimized PDF, Optional barcode system | |
| Supported image standards | PDF,PDF/VT,TIFF, JPEG, BMP & other data base files | |
| Substrates | Offset, Digital, Plastics, Laminated and coated substrates | |
| Printing image width | 288mm (extendable to 430 mm) * 10 m (Length) | |
| Polymer | WB-DS-Clear Polymer | |
| Polymer layer thickness | From 10 up to 180 microns | |
| Ink curing | Inter UV-LED Pre-curing/Full curing by UV-LED | |
| Unwinder diameter | Max. 700mm, Core 76mm | |
| Rewinder diameter | Max. 700mm, Core 76mm | |
| Substrates thickness | 30-400 micro | |
| Substrates width | Max 330mm | |
| Press with Foil station | Machine dimensions (LxHxW) 3500mmx1900mmx1800mm | |
| Operating environment | Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity | |
|
Electrical requirements |
Voltage: 3x380, ±5% 3 phases +G+N ; Frequency: 50/60 Hz Current: Avg. 25 Amps |
|
| Weight | 2800kg | |

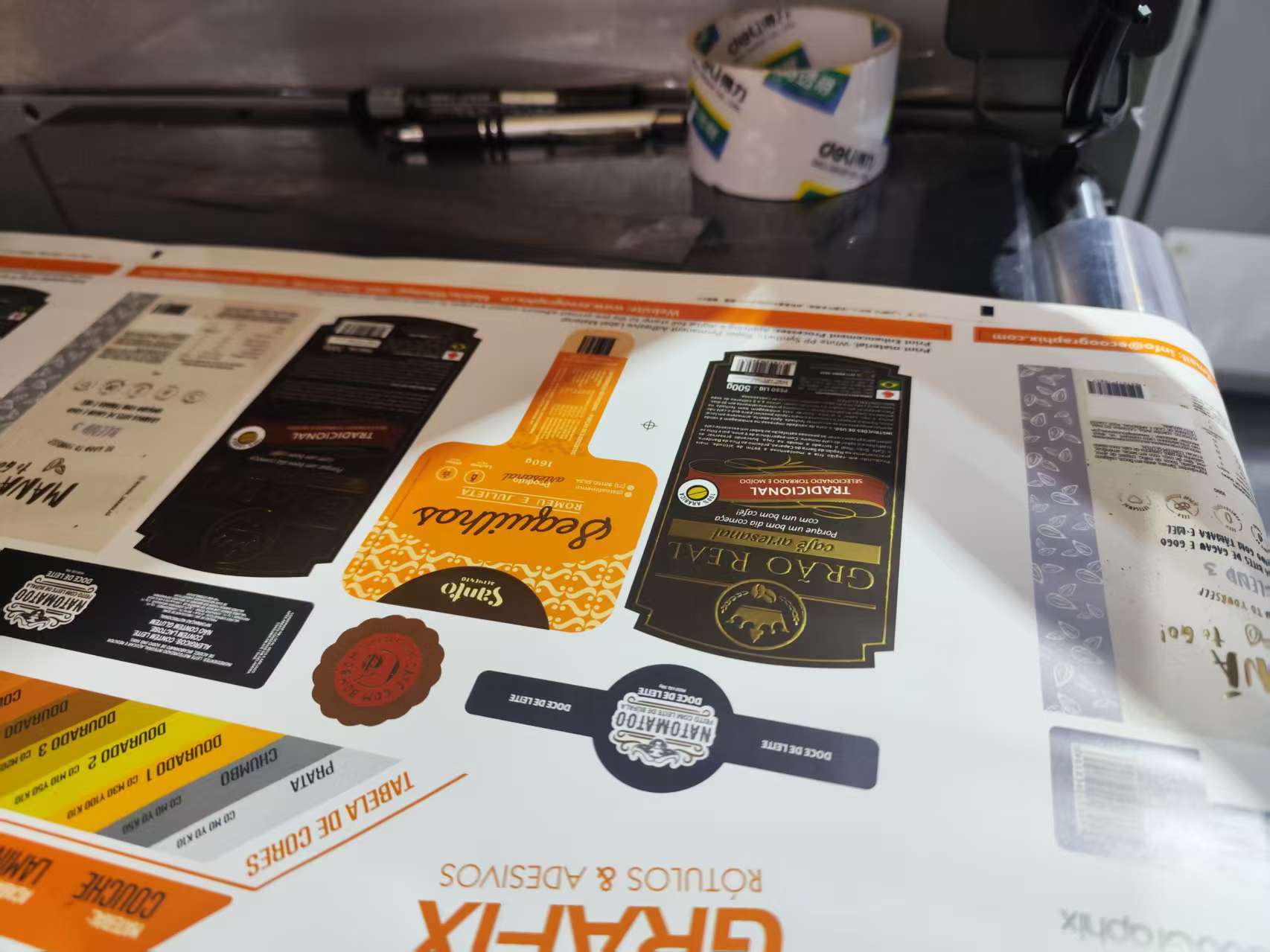

Applications: Stickers, alcohol label, Cosmetic Labels, Luxury labels, Medical Labels, Washi Tape ,Pouch Packages and so on.
EcooSpark unique strengths:
* Unlimited image variety, high resolution up to 1440X360 dpi;
*Top UV inkjet drop on head with printing width 288mm and extendable to 430mm;
*Speed up to 50m/min; varnish printing thickness up to 180um~350um;
*Reliable and cost effective parts and UV varnish supply ;
* GIS-online-print variable data;
* Registration accuracy: 200u;
* Ideal embellishment equipment for digital label press such as HP Indigo, Xeikon, Screen, KM, Durst and etcs.
FAQ:
Q: What is the digital embellishment machine?
A: EcooSpark is the standalone digital label finishing machine which can do laminating,flexo coating ,digital spot UV varnishing and cold foiling and so on.
Gloss Varnish:
An overall glossy varnish finish to your labels creates attention-grabbing visual appeal. That means your labels can be more attractive and popular.
Matt Varnish:
Alternatively, a matt varnished label may reflect your brand values, giving your product an up-market feel. In addition to giving your packaging a premium appearance, a spot varnish will highlight a special detail on your label, like your logo.
Varnish Embellishments:
Furthermore, specialist label varnishes can create wonderful textures. Try a rough-tough varnish with an amazing sandpaper-like feel; a leather-feel or wet-look can be achieved too.
Building up layers of varnish, known as high build varnish, gives your label a touchable tactile feel, encouraging consumers to pick up your merchandise and increasing purchase.
As well as creating a beautiful label, varnishes can be used to add a protective layer. This can be particularly useful if you need to send your goods via post or courier.
Perhaps your label needs to withstand UV light or outdoor conditions. In this case varnishes can provide durability and longevity. In addition, if your products contain certain chemicals or oils a varnished finish will help to protect and maintain the integrity of the label.
Q:Why choose us ?
With about 20 years' exporting experience,we have many customers, such as OEM for Presstek/Mark Andy , and Sttark in USA,Beneco in Canada,
Olderi in Latvia, Focus Print Group in Australia,TSG in Mexico, VinilSul Group in Brazil and so on.
-OEM service is available.
-Protect your design & information
- Three years or longer warranty time for the machine and print heads.
Q:Do you have the CNC workshops ?
-We have our own CNCworkshops,we produces the molds by ourselves.
Q: Can I have sample before order?
A: Yes ,free samples can be sent out,the freight cost is paid by you.
(1).You can provide your a/c like DHL/Fedex/TNT ect.
(2).You can call your courier to pick up at our office.
(3).You can pay us the freight cost by T/T.
Q: Can you make the customized paper bag ?
A: Yes , please show us your sample first .
Q: What time for delivery ?
A: Machine about 45 days after get your deposit.
Q: Engineer oversea service ?
A: Yes ,we can send engineer to help you install ,training worker until the machine normal running.
-If you meet any problem at any time,we could offer the technical support on line as well.
Q: What payment term ?
A: T/T 30% down payment ,balance before delivery ,or LC at sight etc.
Q: Do you have any certificates?
A:We have CE and ISO certificates .
Q: Where is your factory located ? How can I visit you?
A: Our factory is located at Wenzhou city ,Zhejiang province .We can pick you up from either Shanghai or Wenzhou air port or train station.
Q:How can I contact you ?
A:You can contact us by Email / Whatsapp / Wechat / Telephone .
