CTCP/UV-CTP 기계 플레이트 세터 사전 프레스 장비
오프셋 UV CTP

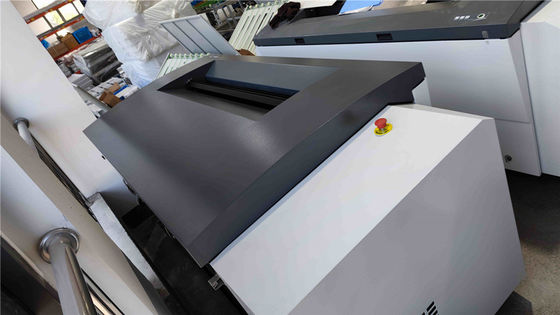

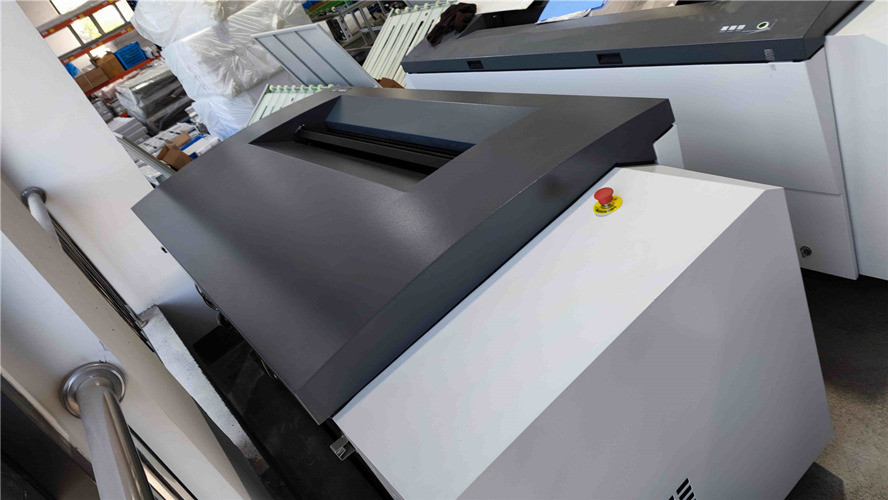

| ECOO UV-800 시리즈 CTP 기계 | |||
| Model | UV-800F | UV-800S | UV-800E |
| Exposing Method | External drum | ||
| Imaging System | 64-channel | 48-channel | 32-channel |
| Discrete 405nm laser diode | |||
| Throughput | 28plates/hour | 22plates/hour | 16plates/hour |
| 1030mm x 800mm, 2400dpi | |||
| Plate Sizes | Max. 1163mm x 940mm, Min. 400mm x 300mm | ||
| Exposing Size | Max. 1130mm x 884mm, Min. 260mm x 284mm | ||
| Media Type | Positive UV-CTP/CTCP plate or high sensitive PS plate | ||
| Plate Thickness | 0.15mm to 0.30mm | ||
| Resolution | 2400dpi | ||
| Repeatability |
± 5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%) |
||
| Interface | USB 2.0 | ||
| Plate Loading | Semi automatic | ||
| Net Weight | 900kg | ||
| Machine Size (WxLxH)mm | 2320 x 1080 x 960 | ||
| Power Supply | Single phase: 220AC, +6%, -10%, Power consumption: 4kw | ||
| Operation Environment |
Recommended: 21-25ºC, Max. 18-26ºC, Humidity: 40-70% | ||
▶▶▶ Success Cases ◀◀◀
▶▶▶ Producing And Packaging ◀◀◀

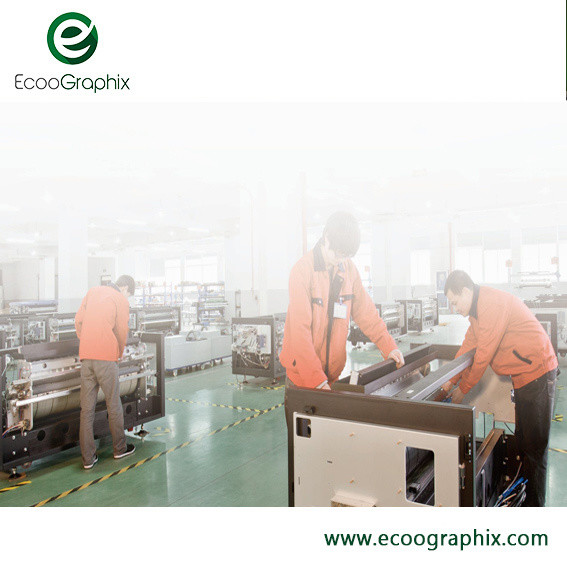

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
▶▶▶ Certificates ◀◀◀
▶▶▶ FAQ ◀◀◀
|
1. What are your main products ?
|
|
2. Where is your factory ?
|
|
3. What is your warranty for the CTPs ?
|
|
4. What is the lead time ?
|
|
5. Can you also supply the Workflow and RIP ?
|
|
6. What about the installation and after-sales technician support ?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
|
