Semi Automatic A2 Book Cover Carton Thermal Film Laminator with Double-sided Laminating UV Dryer and Hot Knife

1세트
MOQ
협상 가능
가격
Semi Automatic A2 Book Cover Carton Thermal Film Laminator with Double-sided Laminating UV Dryer and Hot Knife
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
순중량: 4000kg
최대 용지 크기: (대)760×(W)590
최소 시트 크기: (대)200×(W)240
기계 크기: (L)550×(W)130×(H)180(cm)
기계 속도: 0~80m/min
라미네이팅 온도: 80-110C
기본 정보
원래 장소: 중국
브랜드 이름: ECOOGRAPHIX
인증: CE,SGS
모델 번호: YFMB750
결제 및 배송 조건
포장 세부 사항: 표준 수출 포장
배달 시간: 30일
지불 조건: 신용장, 티/티
공급 능력: 500세트
제품 설명

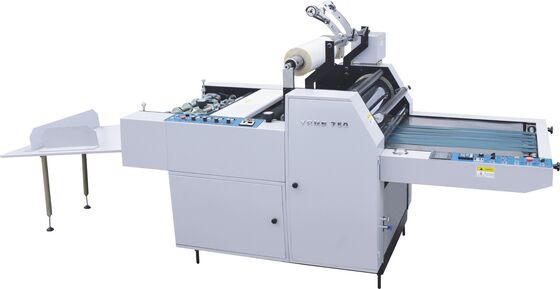

Semi Automatic A2 Book Cover Carton Thermal Film Laminator
Product Overview

The YFMB 750 is a semi-automatic precoating hot laminating machine that utilizes pre-coated film (BOPP/PET with adhesive) for both hot (heated rollers) and cold (pressure only) lamination processes.

Applications

This professional laminating equipment is designed for plastic film application on paper printed materials, widely used in:

  • Packaging materials
  • Paper boxes and cartons
  • Books, magazines, and calendars
  • Handbags and gift boxes
  • Wine packaging paper

Enhances print material quality while providing dust-proof, water-proof, and oil-proof protection. Suitable for printing and laminating enterprises of all scales.

Compatible Films: OPP, PET, PVC, METALLIC, and other precoated or thermal laminating films.

Main Features
  • Double-sided laminating (optional - both sides laminated simultaneously)
  • Dust removal system with surface preheating for enhanced brightness and fit
  • UV dryer for strong fastness, especially for embossing applications (optional)
  • Chain knife for cutting tailless and high-toughness films like PET and aluminum foil (optional)
  • Hot knife for high-speed slitting of tough films (optional)
  • Corona device for improved ink adhesion on laminated surfaces (optional)
  • Static elimination device for paper adhesion control (optional)
  • Embossing system for decorative surface aesthetics (optional)
Technical Specifications
Model YFMB-750
Max. Sheet (W x L) 590 × 760 mm
Min. Sheet (W x L) 200 × 240 mm
Machine Speed 0-80 m/min (one side)
Paper Thickness 100-450 g/m²
Voltage 380V
Paper Feed Height 680 mm
Paper Stack Height 650 mm
Laminating Temperature 80-110 ℃
Power Required 18 kW
Dimensions (L × W × H) 5500 × 1300 × 1800 mm
Net Weight 4000 kg
Semi Automatic A2 Book Cover Carton Thermal Film Laminator YFMB-750
